Vite Plugin Svelte Devtools

Zixtar
6

Dev-tools panel for Svelte 5 + Vite apps — component tree, state inspector, props editor, store inspector, performance profiler, event log

Download

vite-plugin-svelte-devtools

Donate — if this saves you time, consider buying me a coffee:

Disclaimer — this project is 100% AI-written (Claude Sonnet 4.5 via OpenCode). It is published as-is for anyone who finds it useful. Contributions and bug reports are welcome.

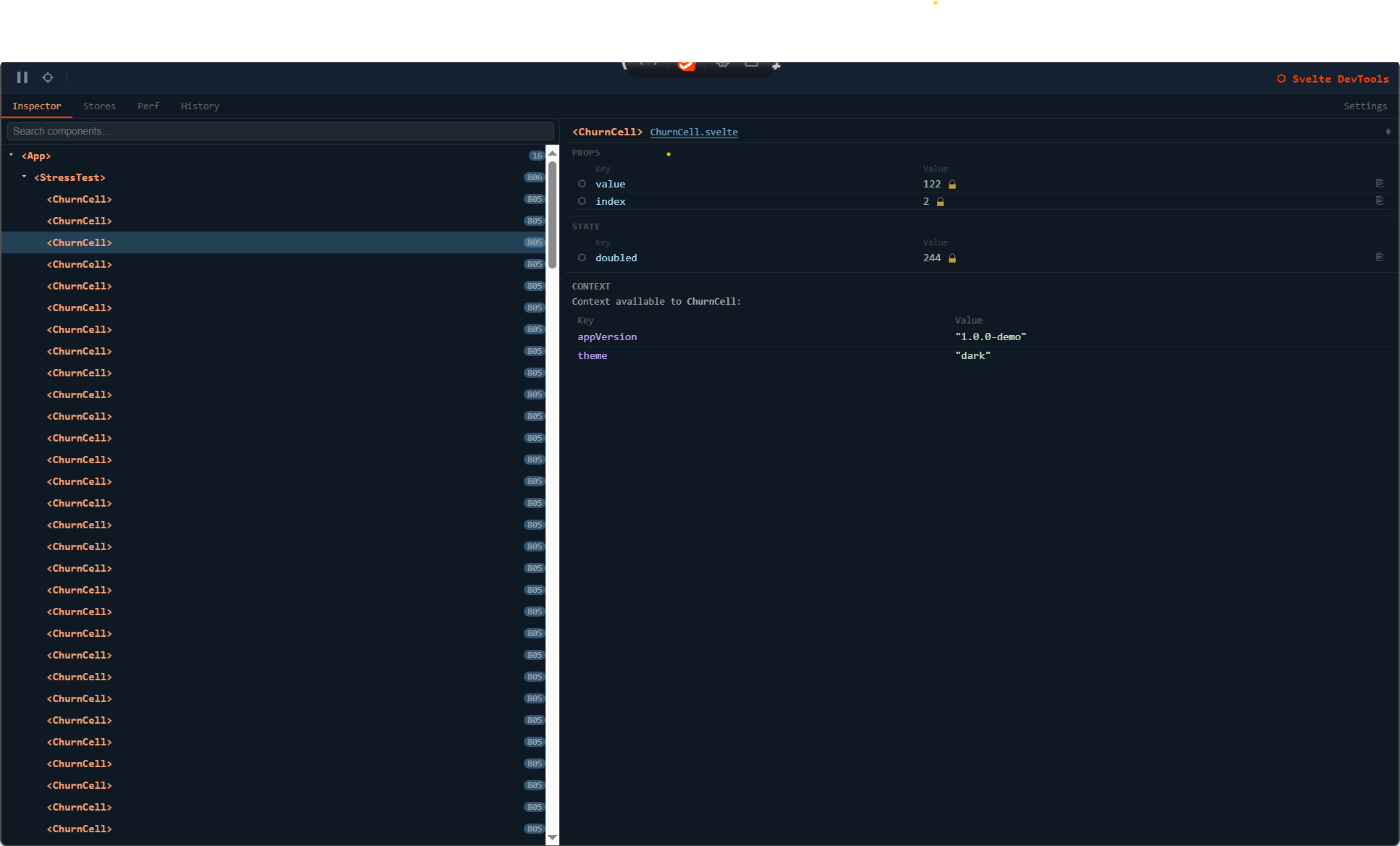

A zero-config devtools panel for Svelte 5 + Vite apps.
Works as a native tab inside the @vitejs/devtools browser panel.

Features

Feature	Description
Component Tree	Live hierarchy of every mounted Svelte component
State Inspector	Per-component `$state` / `$derived` rune snapshot
Props Editor	Click any prop value to edit it live in the browser
Store Inspector	Current value of every registered Svelte store
Performance Profiler	Render count and cumulative / average time per component
History	Pinned prop/state values with a change log
Component Picker	Click any element in the app to jump to its component (Alt+C or Esc to cancel)
Pause / Resume	Freeze tracking with zero runtime overhead while paused
Open in Editor	Jump directly to a component's source file

Requirements

Peer dependency	Version
`svelte`	`^5.0.0`
`vite`	`^8.0.0`
`@vitejs/devtools`	`^0.1.0` (optional, for the native panel)

Installation

npm i -D vite-plugin-svelte-devtools

Setup

With `@vitejs/devtools` (recommended — native panel)

Install the Vite DevTools plugin if you haven't already:

npm i -D @vitejs/devtools

Then wire both plugins in your vite.config.ts:

import { defineConfig } from 'vite'
import { svelte } from '@sveltejs/vite-plugin-svelte'
import { svelteDevTools } from 'vite-plugin-svelte-devtools'
import { DevTools } from '@vitejs/devtools'

const devtools = svelteDevTools()

export default defineConfig({
  plugins: [
    DevTools(),
    svelte({ preprocess: devtools.preprocess }),
    devtools.plugin,
  ],
})

Open your app in the browser, click the Vite DevTools icon, and switch to the Svelte tab.

Standalone (floating overlay)

If you are not using @vitejs/devtools, the plugin falls back to a floating Shadow DOM panel injected directly into your app:

import { defineConfig } from 'vite'
import { svelte } from '@sveltejs/vite-plugin-svelte'
import { svelteDevTools } from 'vite-plugin-svelte-devtools'

const devtools = svelteDevTools()

export default defineConfig({
  plugins: [
    svelte({ preprocess: devtools.preprocess }),
    devtools.plugin,
  ],
})

A small ⬡ badge appears in the bottom-right corner — click it to open the panel.

Plugin options

svelteDevTools(options?)

Option	Type	Default	Description
`devOnly`	`boolean`	`true`	Automatically disable during `vite build`

Keyboard shortcuts

Shortcut	Action
`Alt+C`	Toggle component picker
`Esc`	Cancel component picker

How it works

Components are instrumented automatically by the preprocessor at build time — no manual imports required.

Svelte component (instrumented by preprocessor)
  └─ __sdt_mount__ / __sdt_update__ / __sdt_unmount__
       └─ runtime/index.ts  (in-memory component tree)
            └─ HMR WebSocket  (Vite DevTools RPC)  /  CustomEvent (standalone)
                 └─ bridge.svelte.ts  ($state reactive store)
                      └─ DevTools panel  (Svelte SPA in iframe)

Commands flow in reverse (prop edits, highlight, pick mode) via the same channel.

License

MIT
