Svelte Reorderable List

A simple and accessible reorderable list component for Svelte 5.

Features

• Drag and drop to reorder items.
• Touch support for mobile devices.
• Accessibility support: keyboard navigation with Ctrl + Arrow keys.
• Horizontal and vertical lists.
• Customizable drag handle.
• Built with Svelte 5 runes.

Installation

pnpm install svelte-reorderable-list

Demo

Basic List Reordering

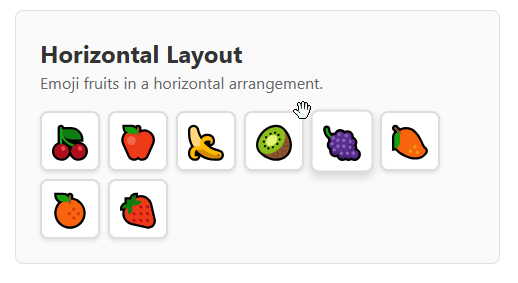

Horizontal Layout

Custom Drag Handle

Keyboard Navigation

Use Tab key to focus element and then Ctrl+Arrows to move.

Vertical Lists:

Horizontal Lists:

Usage

Here is a basic example of how to use the ReorderableList component.

<script>
    import ReorderableList from 'svelte-reorderable-list';


    let items = [
        { id: '1', text: 'Item 1' },
        { id: '2', text: 'Item 2' },
        { id: '3', text: 'Item 3' },
        { id: '4', text: 'Item 4' },
    ];
    // or items = $state([...])

    const getKey = (item) => item.id;

    function handleUpdate(updatedItems) {
        items = updatedItems;
    }
</script>

{#snippet item(item, index)}
    <div class="item">
        <span>{item.text}</span>
    </div>
{/snippet}

<ReorderableList
    items={items}
    getKey={getKey}
    onUpdate={handleUpdate}
    item={item}
/>

<style>
    .item {
        padding: 1rem;
        border: 1px solid #ccc;
        background-color: #f9f9f9;
    }
</style>

Props

Prop	Type	Required	Default	Description
items	ItemType[]	Yes	undefined	The array of items to be displayed.
getKey	(item: ItemType) => string	Yes	undefined	A function that returns a unique key for each item.
item	Snippet<[ItemType, number]>	Yes	undefined	A Svelte 5 snippet for rendering each item. It receives the item and its index.
onUpdate	(items: ItemType[]) => void	Yes	undefined	Callback function that is called with the new item order after a change.
direction	"horizontal" | "vertical"	No	"vertical"	The direction of the list.
disabled	boolean	No	false	When true, the reordering functionality is disabled.
cssSelectorHandle	string	No	undefined	A CSS selector for the drag handle. If not provided, the entire item is draggable.

Theming and Customization

The components use CSS custom properties for theming. You can customize the appearance by overriding these variables in your CSS:

:root {
    /* Focus and interaction colors */
    --reorderable-focus-color: #007acc;
    --reorderable-focus-offset: 2px;
    --reorderable-focus-radius: 3px;

    /* Drag clone appearance */
    --reorderable-drag-shadow: 0 10px 30px rgba(0, 0, 0, 0.3);
    --reorderable-drag-opacity: 0.6;
    --reorderable-drag-scale: 1.02;

    /* Keyboard tip styling */
    --reorderable-keyboard-tip-bg: #016DB6;
    --reorderable-keyboard-tip-color: white;
    --reorderable-keyboard-tip-radius: 4px;

    /* Drop indicators (for tree component) */
    --reorderable-drop-indicator-color: #007acc;
    --reorderable-drop-indicator-radius: 2px;
    --reorderable-drop-child-bg: rgba(0, 122, 204, 0.2);
}

Example: Dark Theme

:root {
    --reorderable-focus-color: #4fc3f7;
    --reorderable-keyboard-tip-bg: #2196f3;
    --reorderable-drop-indicator-color: #4fc3f7;
    --reorderable-drag-shadow: 0 10px 30px rgba(0, 0, 0, 0.5);
}

Example: Custom Brand Colors

:root {
    --reorderable-focus-color: #6366f1;
    --reorderable-keyboard-tip-bg: #4f46e5;
    --reorderable-drop-indicator-color: #6366f1;
    --reorderable-drop-child-bg: rgba(99, 102, 241, 0.1);
}

Tree Component

Tree Demo

Tree Keyboard Navigation

Use Tab key to focus element and then Ctrl+Arrows to move.

The library also includes a ReorderableTree component for hierarchical data. It supports two input modes:

Tree Mode (Hierarchical Structure)

<script>
    import { ReorderableTree, type TreeNode } from 'svelte-reorderable-list';

    let treeNodes: TreeNode<{ id: string; name: string; }>[] = [
        {
            item: { id: '1', name: 'Parent 1' },
            children: [
                { item: { id: '1-1', name: 'Child 1.1' } },
                { item: { id: '1-2', name: 'Child 1.2' } }
            ]
        },
        {
            item: { id: '2', name: 'Parent 2' },
            children: [
                { item: { id: '2-1', name: 'Child 2.1' } }
            ]
        }
    ];

    const getKey = (item) => item.id;

    function handleTreeUpdate(updatedNodes) {
        treeNodes = updatedNodes;
    }
</script>

{#snippet item(item, index)}
    <div class="tree-item">
        <span>{item.name}</span>
    </div>
{/snippet}

<ReorderableTree
    treeNodes={treeNodes}
    getKey={getKey}
    onUpdate={handleTreeUpdate}
    item={item}
    levelPadding="20px"
/>

Flat Mode (Parent-Child References)

For easier data management, you can also use a flat structure where hierarchy is defined by parentKey references:

<script>
    import { ReorderableTree, type FlatTreeNode } from 'svelte-reorderable-list';

    let flatNodes: FlatTreeNode<{ id: string; name: string; }>[] = [
        { item: { id: '1', name: 'Parent 1' }, key: '1' },
        { item: { id: '1-1', name: 'Child 1.1' }, key: '1-1', parentKey: '1' },
        { item: { id: '1-2', name: 'Child 1.2' }, key: '1-2', parentKey: '1' },
        { item: { id: '2', name: 'Parent 2' }, key: '2' },
        { item: { id: '2-1', name: 'Child 2.1' }, key: '2-1', parentKey: '2' }
    ];

    function handleFlatTreeUpdate(updatedNodes) {
        flatNodes = updatedNodes;
    }
</script>

{#snippet item(item, index)}
    <div class="tree-item">
        <span>{item.name}</span>
    </div>
{/snippet}

<ReorderableTree
    flatNodes={flatNodes}
    onUpdate={handleFlatTreeUpdate}
    item={item}
    levelPadding="20px"
/>

Tree Component Props

The ReorderableTree component automatically detects the input mode based on the props provided.

Tree Mode Props

Prop	Type	Required	Default	Description
treeNodes	TreeNode<ItemType>[]	Yes	undefined	The array of tree nodes to be displayed.
getKey	(item: ItemType) => string	Yes	undefined	A function that returns a unique key for each item.
onUpdate	(nodes: TreeNode<ItemType>[]) => void	Yes	undefined	Callback function that is called with the new tree structure after a change.

Flat Mode Props

Prop	Type	Required	Default	Description
flatNodes	FlatTreeNode<ItemType>[]	Yes	undefined	The array of flat tree nodes with parentKey references.
onUpdate	(flatNodes: FlatTreeNode<ItemType>[]) => void	Yes	undefined	Callback function that is called with the new flat structure after a change.

Common Props

Prop	Type	Required	Default	Description
item	Snippet<[ItemType, number]>	Yes	undefined	A Svelte 5 snippet for rendering each item. It receives the item and its index.
disabled	boolean	No	false	When true, the reordering functionality is disabled.
cssSelectorHandle	string	No	undefined	A CSS selector for the drag handle. If not provided, the entire item is draggable.
levelPadding	string	No	"20px"	CSS padding value for each nesting level.

Type Definitions

interface TreeNode<ItemType> {
    item: ItemType;
    children?: TreeNode<ItemType>[];
}

interface FlatTreeNode<ItemType> {
    item: ItemType;
    key: string;
    parentKey?: string;
}

Choosing Between Tree and Flat Mode

Use Tree Mode When:

• Your data is naturally hierarchical (e.g., file systems, nested categories)
• You prefer working with nested object structures
• You need to maintain the tree structure in your existing data model

Use Flat Mode When:

• Your data comes from a database with parent-child relationships
• You need easier state management and updates
• You want to avoid deep nesting complexity
• You're working with dynamic hierarchies that change frequently

Both modes provide identical functionality and user experience - the choice is purely about data structure preference.

Tree Keyboard Navigation

• Use Tab to focus on an item.
• Ctrl + ↑/↓: Move item up/down within the same level
• Ctrl + ←: Move item up one level (make it sibling of its parent)
• Ctrl + →: Make item a child of the previous item

Accessibility

General Accessibility Features

• Full keyboard navigation support
• ARIA attributes for screen readers
• Focus management with visible focus indicators
• Reduced motion support for users with vestibular disorders
• High contrast mode support

Keyboard Navigation

List Component

• Use Tab to focus on an item.
• Once an item is focused, use Ctrl + ArrowUp/ArrowDown for vertical lists or Ctrl + ArrowLeft/ArrowRight for horizontal lists to move the item.

Tree Component

• Use Tab to focus on an item.
• Once an item is focused, use the keyboard shortcuts described above for tree navigation.
